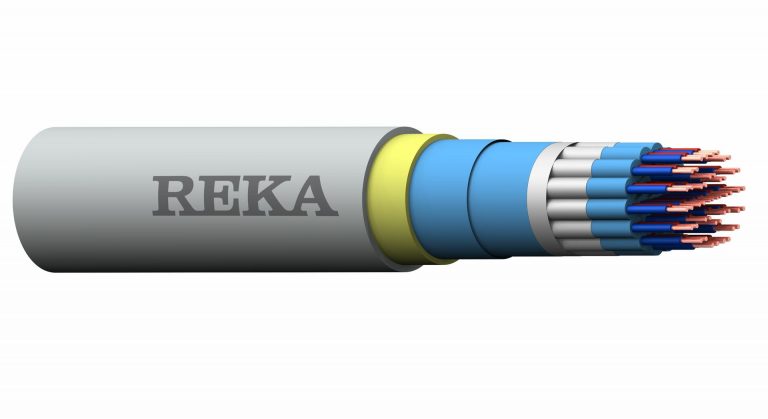

KJAAM-HF C
Download product group datasheet
Instrumentation cable for fixed installations indoors and outdoors. Not to be laid in soil nor directly in cast concrete. Can also be used in medical facilities where higher fire class is required. EMC shielded cable gives an excellent protection against electromagnetic disturbancies. Installations must be in accordance with national regulations and rules of installations. The cable is halogen-free and flame-retardant according to CPR-class Cca-s1,d1,a1.
| Standards | EN 50288-7 |
|---|---|
| Reaction to fire | Cca-s1,d1,a1 |
| CPR - DoP | 2019008_DOP.pdf |
| Conductor | Circular stranded tinned copper, EN/IEC 60228 class 2 |
| Insulation | Halogen free polyethylene |
| Core Identification (all color combinations in the cable family) | Blue, red |
| Pair lay up | Cores are twisted in pairs |
| Individual shield | Aluminium tape and earthing conductor |
| Cable lay up | Insulated cores twisted in pairs. Colors in pairs blue and red. Pairs marked with a numbers. |
| Separation sheath | Halogen free filling compound |
| Overall shield | Two aluminium tapes and earthing conductor (tinned copper, between the tapes) |
| Oversheath | UV-protected halogen-free polyolefin compound |
| Colour of the oversheath | Grey |
1x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
1x(2+1)x0,5 GY
Nominal diameter of complete cable mm
7
Nominal weight of cable kg/km
56
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
2
Min. bending radius
During handling and installation, cable mm
105
In final installation, cable mm
70
During handling and installation, cable cm
10
In final installation, cable cm
7
Max. pulling force
Pulling-eye kN
0.05
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304822
Reka code
1147171
Nominal diameter of complete cable mm
7
Nominal weight of cable kg/km
56
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
2
Min. bending radius
During handling and installation, cable mm
105
In final installation, cable mm
70
During handling and installation, cable cm
10
In final installation, cable cm
7
Max. pulling force
Pulling-eye kN
0.05
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304839
Reka code
1147171
2x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
2x(2+1)x0,5 GY
Nominal diameter of complete cable mm
10
Nominal weight of cable kg/km
120
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
4
Min. bending radius
During handling and installation, cable mm
153
In final installation, cable mm
102
During handling and installation, cable cm
15
In final installation, cable cm
10
Max. pulling force
Pulling-eye kN
0.1
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304846
Reka code
1147172
Nominal diameter of complete cable mm
10
Nominal weight of cable kg/km
120
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
4
Min. bending radius
During handling and installation, cable mm
153
In final installation, cable mm
102
During handling and installation, cable cm
15
In final installation, cable cm
10
Max. pulling force
Pulling-eye kN
0.1
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304853
Reka code
1147172
4x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
4x(2+1)x0,5 GY
Nominal diameter of complete cable mm
12
Nominal weight of cable kg/km
173
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
8
Min. bending radius
During handling and installation, cable mm
173
In final installation, cable mm
116
During handling and installation, cable cm
17
In final installation, cable cm
12
Max. pulling force
Pulling-eye kN
0.2
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304860
Reka code
1147174
Nominal diameter of complete cable mm
12
Nominal weight of cable kg/km
173
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
8
Min. bending radius
During handling and installation, cable mm
173
In final installation, cable mm
116
During handling and installation, cable cm
17
In final installation, cable cm
12
Max. pulling force
Pulling-eye kN
0.2
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304877
Reka code
1147174
8x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
8x(2+1)x0,5 GY
Nominal diameter of complete cable mm
16
Nominal weight of cable kg/km
296
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
16
Min. bending radius
During handling and installation, cable mm
244
In final installation, cable mm
163
During handling and installation, cable cm
24
In final installation, cable cm
16
Max. pulling force
Pulling-eye kN
0.4
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304891
Reka code
1147178
Nominal diameter of complete cable mm
16
Nominal weight of cable kg/km
296
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
16
Min. bending radius
During handling and installation, cable mm
244
In final installation, cable mm
163
During handling and installation, cable cm
24
In final installation, cable cm
16
Max. pulling force
Pulling-eye kN
0.4
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304884
Reka code
1147178
12x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
12x(2+1)x0,5 GY
Nominal diameter of complete cable mm
19
Nominal weight of cable kg/km
413
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
24
Min. bending radius
During handling and installation, cable mm
280
In final installation, cable mm
187
During handling and installation, cable cm
28
In final installation, cable cm
19
Max. pulling force
Pulling-eye kN
0.6
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304914
Reka code
1147182
Nominal diameter of complete cable mm
19
Nominal weight of cable kg/km
413
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
24
Min. bending radius
During handling and installation, cable mm
280
In final installation, cable mm
187
During handling and installation, cable cm
28
In final installation, cable cm
19
Max. pulling force
Pulling-eye kN
0.6
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304907
Reka code
1147182
24x(2+1)x0,5 GY
Electric number
Size
Packaging
Voltage
24x(2+1)x0,5 GY
Nominal diameter of complete cable mm
26
Nominal weight of cable kg/km
751
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
48
Min. bending radius
During handling and installation, cable mm
392
In final installation, cable mm
261
During handling and installation, cable cm
39
In final installation, cable cm
26
Max. pulling force
Pulling-eye kN
1.2
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304945
Reka code
1147194
Nominal diameter of complete cable mm
26
Nominal weight of cable kg/km
751
Conductor material
Copper
Nominal diameter of conductor mm
0.9
Nominal cross-sectional area of conductor mm2
0.5
Nominal thickness of insulation mm
0.4
Number of wires
48
Min. bending radius
During handling and installation, cable mm
392
In final installation, cable mm
261
During handling and installation, cable cm
39
In final installation, cable cm
26
Max. pulling force
Pulling-eye kN
1.2
Resistance 20 °C Ω/km
37,4
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-10
Minimum cable temperature during operation °C
-40
Maximum conductor temperature in normal operation °C
70
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
160
EAN code
6438176304952
Reka code
1147194
